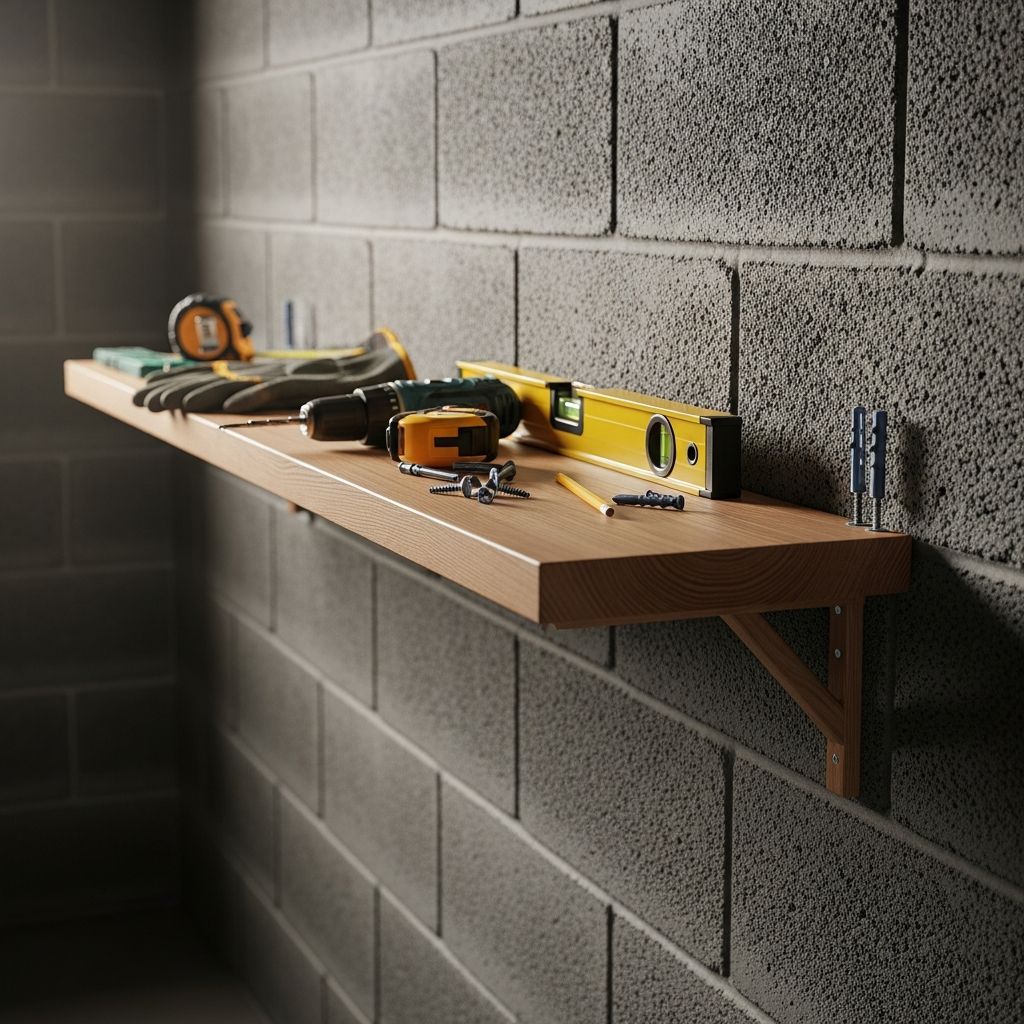

Mounting Shelves on Concrete Block Walls
Master the art of securing sturdy shelves to concrete block walls for optimal storage solutions in garages and basements.
Mounting Shelves on Concrete Block Walls: A Complete DIY Guide
Concrete block walls, common in garages, basements, and workshops, offer robust support for heavy-duty shelving but require specific techniques for secure installation. This guide provides detailed instructions, tool recommendations, and best practices to ensure your shelves remain stable under load.
Why Choose Concrete Block Walls for Shelving?
These walls provide exceptional strength compared to drywall, making them ideal for storing tools, supplies, or bulk items. Proper mounting prevents sagging or collapse, maximizing space efficiency. Factors like wall condition and load weight influence anchor selection for longevity.
Essential Tools and Materials
Gathering the right equipment upfront streamlines the process and enhances safety. Key items include:
- Hammer drill with masonry bits (1/4-inch or as specified by anchors)
- Torque screwdriver or impact driver
- Torpedo level and tape measure
- Pencil, masking tape, and vacuum or blower for dust removal
- Concrete anchors (Tapcon screws, expansion anchors, or lag bolts)
- Shelf brackets (L-shaped, heavy-duty rated for intended load)
- Shelving boards (plywood, metal, or pre-cut units)
- Wood screws or brackets for shelf attachment
Select anchors based on shelf weight: light-duty for under 50 lbs per bracket, heavy-duty for more. Masonry bits must match anchor diameter precisely.
Planning Your Shelf Layout
Effective planning prevents misalignment and ensures even weight distribution. Start by assessing space:
- Measure wall dimensions and desired shelf height, spacing at least 12-18 inches vertically for access.
- Account for door swings or obstructions; position top shelves below head height.
- Calculate bracket spacing: maximum 32 inches apart for standard loads, closer for heavier items.
| Shelf Length | Recommended Brackets | Max Spacing |
|---|---|---|
| 8 feet | 4-5 | 24 inches |
| 10 feet | 5-6 | 29 inches |
| 12 feet | 6-7 | 24 inches |
Use a level to mark horizontal lines with masking tape for visual guides.
Selecting the Right Anchors for Concrete Blocks
Concrete blocks have solid and hollow sections; solid areas (ends) hold anchors best. Options include:
- Tapcon Screws: Self-tapping, ideal for solid blocks; drill 1/4-inch deeper than embedment.
- Plastic Expansion Anchors: Affordable for lighter loads; expand when screwed.
- Masonry Lag Bolts: For extreme loads; use with ratchet or impact driver.
Always clean holes post-drilling to ensure maximum grip. Avoid over-tightening to prevent stripping.
Step-by-Step Installation Process
1. Mark Bracket Positions
Align brackets 1-2 inches from shelf ends. Use tape outlines and pencil marks for hole centers, verifying with a level.
2. Drill Pilot Holes
Employ hammer drill on hammer mode. Drill depth exceeds anchor length by 1/4-inch. Blow out debris thoroughly.
3. Insert Anchors and Mount Brackets
Drive anchors snugly with hammer mode off. Secure brackets, checking levelness before final tightening.
4. Attach Shelves
Position shelves atop brackets. Fasten with short wood screws (1/2-inch) to avoid penetration. For multi-tier units, use connector brackets between levels.
5. Test Stability
Apply gradual weight, inspecting for movement. Readjust as needed.
Advanced Techniques for Heavy Loads
For items exceeding 100 lbs per shelf, reinforce with additional brackets or vertical 2×4 supports secured via toggle bolts in hollow cores. Stagger anchors across multiple block courses for broader distribution.
Safety Precautions and Common Mistakes
Prioritize eye protection and secure footing. Avoid these pitfalls:
- Using standard drill bits on masonry.
- Skipping dust removal, reducing anchor hold.
- Ignoring load ratings, risking failure.
- Over-tightening, which strips threads.
Wear gloves and ensure workspace ventilation during drilling.
Troubleshooting Installation Issues
Bracket Won’t Level: Shim with washers or re-drill slightly oversized holes.
Shelf Sags: Add mid-span brackets.
Anchor Spins Loose: Redrill and use larger diameter anchors.
Cracking Wall: Switch to lower-torque driving.
Maintenance and Longevity Tips
Periodically inspect anchors for corrosion, especially in damp areas. Tighten loose screws annually. Use rust-resistant hardware for basements.
Frequently Asked Questions (FAQs)
What is the best anchor for hollow concrete blocks?
Toggle bolts or snap toggles provide superior hold in voids compared to expansion types.
Can I use floating shelves on concrete blocks?
Yes, with heavy-duty French cleats or embedded rails anchored properly into solid sections.
How much weight can standard brackets hold?
Typically 75-150 lbs per bracket when installed correctly into masonry.
Do I need a hammer drill?
Essential for efficient drilling; regular drills struggle and overheat.
What’s the ideal shelf depth for concrete walls?
12-18 inches balances accessibility and stability.
Customizing Shelves for Specific Spaces
Adapt for garages with slatwall integrations or workshops using adjustable tracks. Modular systems allow reconfiguration without full reinstallation.
Installing shelves on concrete block walls transforms underutilized spaces into organized havens. By following these steps, achieve professional results safely and efficiently.
References
- Concrete Anchors 101: Types and How to Use Them — Simpson Strong-Tie. 2024-05-15. https://www.strongtie.com/resources/product-installers-guide/anchors-installation/concrete-anchors-101
- Masonry Fasteners Technical Manual — ITW Buildex (Tapcon). 2023-11-01. https://www.itwbuildex.com/wp-content/uploads/2023/11/Tapcon-Technical-Manual.pdf
- Guidelines for Installing Anchors in Concrete and Masonry — International Code Council (ICC-ES). 2025-02-10. https://www.icc-es.org/wp-content/uploads/2025/02/ESR-4722.pdf
- DIY Concrete Wall Mounting Best Practices — Home Depot Pro Guide. 2024-08-20. https://www.homedepot.com/c/ah/how-to-install-wall-anchors/9ba683603be9fa5395fab901d927b4a
- Structural Design for Shelf Brackets in Masonry Walls — American Society of Civil Engineers (ASCE). 2023-07-12. https://ascelibrary.org/doi/book/10.1061/9780784415986
