Extracting Drawers from Craftsman Tool Chests
Master the art of safely removing and reinstalling drawers in your Craftsman tool chest for effortless organization and maintenance.
Extracting Drawers from Craftsman Tool Chests: The Ultimate Guide
Craftsman tool chests are renowned for their durability and spacious storage, making them a staple in garages and workshops worldwide. However, accessing the full interior for cleaning, reorganization, or repairs often requires removing the drawers. Unlike some competitors with visible levers, Craftsman designs feature subtle drawer stops that demand a specific technique. This guide provides detailed, model-agnostic instructions to help you extract drawers efficiently while avoiding common mistakes.
Why Remove Drawers from Your Craftsman Tool Chest?
Drawer removal isn’t just a maintenance task; it’s essential for optimal toolbox performance. Over time, tools shift, debris accumulates, and slides wear, leading to jams or uneven gliding. Regular extraction allows thorough cleaning, inventory checks, and custom organization. For instance, separating heavy items prevents slide overload, extending the chest’s lifespan. Home mechanics and professionals alike benefit from this process during seasonal deep cleans or upgrades.
- Deep Cleaning: Vacuum dust from slides and wipe interiors to prevent rust.
- Organization: Sort tools by size or frequency of use for quicker access.
- Repairs: Inspect and lubricate ball-bearing slides for smooth operation.
- Custom Mods: Add dividers or liners without drawer constraints.
Essential Tools and Safety Preparations
Minimal tools are needed, emphasizing Craftsman’s user-friendly design. Gather these before starting:
| Tool | Purpose | Recommended Size/Type |
|---|---|---|
| Flathead Screwdriver | Disengage stops | 1/8-inch or smaller blade |
| Flashlight | Illuminate slots | LED, compact |
| Gloves | Protect hands | Work-grade, non-slip |
| Lubricant | Post-maintenance | Silicone-based, dry lube |
| Soft Cloth | Cleaning slides | Microfiber |
Safety First: Unplug power tools nearby, clear the work area, and work on a stable surface. Empty drawers partially to reduce weight—full drawers increase jam risks. Wear gloves to avoid pinched fingers on sharp slide edges.
Step-by-Step Instructions for Drawer Extraction
The process is consistent across most Craftsman chests with side-mounted slides. Focus on one side at a time for control.

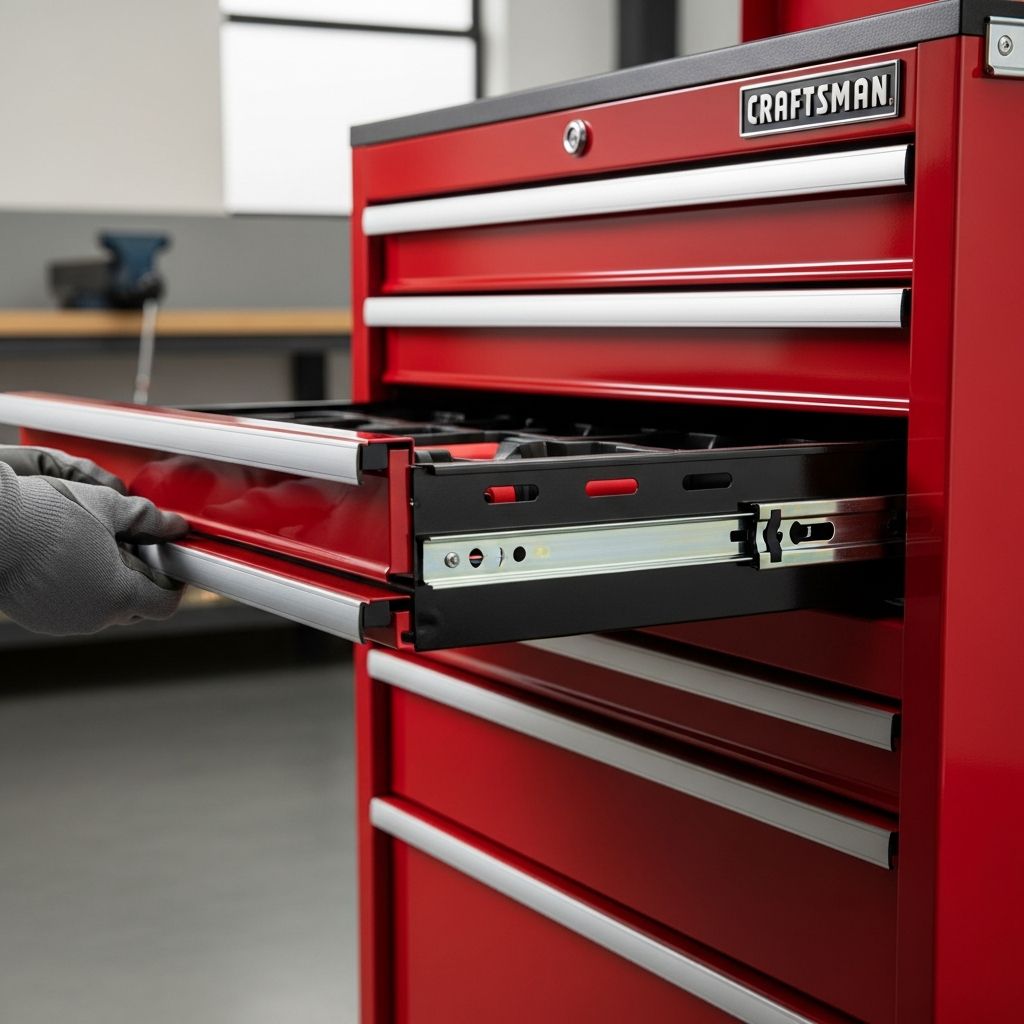

- Fully Extend the Drawer: Pull until it stops firmly. This positions the stop mechanism in the slot.
- Locate the Stop Slot: Peer inside the drawer sides or under the extended slide. Look for a U-shaped or triangular indentation near the front—typically on the right side first.
- Insert Screwdriver: Slide the flathead into the slot perpendicularly. Apply gentle inward pressure while pulling the drawer lightly. You may need to retract 1/4 inch for alignment.
- Release and Pull: Feel a subtle ‘pop’ as the stop disengages. Maintain pressure and draw the drawer forward steadily. Repeat on the left side.
- Detach Fully: Lift slightly once both sides release to clear the rear hooks.
For stubborn cases, rock gently without forcing. Videos confirm this takes under 30 seconds per drawer with practice.
Navigating Variations in Craftsman Models
Not all Craftsman chests are identical. Older ball-bearing models use flexible plastic or metal tabs, while Quiet Glide versions have friction-based catches.
- Ball-Bearing Slides: Pry tabs outward with precision; avoid bending.
- Friction Slides: Push a thin tool past the clip while holding the rail.
- Non-Lever Types: Use finger holes on plastic stops, pushing back against the slide.
Check your model’s year: Pre-2010 units may require slight drawer depression before prying. Test on a top drawer first.
Troubleshooting Common Challenges
Jams plague every toolbox owner. Here’s how to resolve them:
| Issue | Symptom | Solution |
|---|---|---|
| Drawer Won’t Extend Fully | Stops engage prematurely | Clear internal obstructions; lubricate slides |
| Screwdriver Won’t Fit | Slot misaligned | Retract 1/4-1/2 inch; use thinner tool |
| Stop Feels Stuck | No release ‘pop’ | Increase gentle pressure; check both sides equally |
| Damaged Slide | Grinding or wobble | Inspect for debris; replace if bent (rare) |
A frequent culprit: Tools like pliers wedged sideways. Always center heavy items and underfill edge compartments.
Reinstallation: Getting Drawers Back Smoothly
Reverse engineering is straightforward but demands alignment.
- Extend Cabinet Slides: Pull chest-side rails fully out.
- Align Drawer Hooks: Match drawer rear to rail guides, starting one side.
- Slide In Evenly: Push until resistance; feel the stop catch, then advance fully.
- Test Operation: Extend and retract multiple times. Verify stops engage identically to neighbors.
If stops misalign, nudge from inside with the screwdriver until ‘bumped’ correctly. Patience prevents rework.
Pro Tips for Long-Term Toolbox Care
Beyond removal, maintain your Craftsman chest:
- Lubricate quarterly with dry silicone to repel dust.
- Label drawers for quick reassembly.
- Upgrade to foam inserts for tool silhouettes.
- Store in climate-controlled spaces to avoid slide corrosion.
Organize by weight: Heaviest at bottom for stability. This practice, rooted in workshop ergonomics, reduces strain and tip-over risks.
Frequently Asked Questions (FAQs)
Do all Craftsman tool chests use the same removal method?
No, but most side-slide models follow the screwdriver technique. Check for levers on newer or Husky-rebranded units.
Can I remove drawers without tools?
Rarely; the stops require depression. A thin key or brass strip works in pinches for friction types.
What if I bend a stop during removal?
Gently reshape with pliers. Functionality usually restores; replacements are inexpensive via Craftsman parts.
How often should I remove drawers for maintenance?
Every 6-12 months, or after heavy use, to prevent buildup and ensure safety.
Are there videos for visual guidance?
Yes, search for ‘Craftsman drawer removal’—short clips demonstrate exact motions.
Conclusion
Mastering drawer extraction transforms your Craftsman tool chest from a cluttered holder to an efficient workstation. With practice, this 2-minute task per drawer unlocks maintenance potential, saving time and frustration. Approach with care, and your toolbox will serve reliably for years.
