Replace Sump Pump Check Valve: Complete DIY Guide

The check valve in your sump pump system serves as a one-way gate, ensuring water flows out of the sump pit but never returns. When it fails, you risk constant pump cycling, flooding, and higher energy bills. Replacing it yourself saves money and restores efficiency quickly.

Why Your Sump Pump Needs a Reliable Check Valve

A functioning check valve prevents backflow, which occurs when water rushes back into the pit after the pump stops. This backflow can cause the pump to restart repeatedly, leading to premature wear and noisy operation. Proper installation, typically 8-12 inches above the pump outlet, minimizes turbulence and water hammer. Without it, your basement faces increased flood risk during storms.

Signs It’s Time for Check Valve Replacement

• Excessive noise: Loud banging or clunking when the pump cycles indicates a failing valve allowing backflow.
• Frequent cycling: Pump turns on and off rapidly, even with minimal water.
• Water backup: Pit refills quickly after pumping, suggesting reverse flow.
• Visible leaks: Dripping around the valve or pipe connections.
• Age or buildup: Mineral deposits or cracks after years of service.

Inspect annually, especially before rainy seasons, to catch issues early.

Choosing the Best Check Valve for Your System

Select based on pipe size (usually 1-1/4″ or 1-1/2″), connection type, and noise concerns. Measure your discharge pipe accurately.

Opt for unions or rubber couplings for easy future access. Ensure the flow arrow points away from the pump.

Gathering Tools and Materials

Prepare everything beforehand to avoid mid-job trips to the store.

Tools List

• Two adjustable wrenches or pipe wrenches
• PVC cutter or hacksaw
• Sandpaper/emery cloth
• Screwdriver for clamps
• Bucket and shop vac
• Flashlight, safety glasses, gloves

Materials List

• New check valve (matched size)
• PTFE tape or thread sealant
• PVC primer and cement (for glued pipes)
• Rubber couplings or unions if needed
• Clean rags

These items handle most residential setups.

Preparation Steps Before Starting

Safety first: Shut off power at the breaker and unplug the pump. Dry the pit with a shop vac to reduce slips. Place a bucket under the discharge line. Note the old valve’s flow direction before removal.

Detailed Step-by-Step Replacement Process

Follow these steps based on your connection type. Work in a well-lit area.

Step 1: Shut Down and Drain

Power off the sump pump. Bail out water from the pit using a bucket or wet vac for clear access.

Step 2: Identify and Access the Valve

Locate it on the vertical discharge pipe, usually 12-24 inches above the pump. It has a flow arrow. If overhead, use a sturdy ladder.

Step 3: Disconnect the Old Valve

Threaded: Hold pipe steady with one wrench; unscrew counterclockwise with the other.
Glued PVC: Cut pipe 2-3 inches on each side with a PVC cutter for square ends.
Rubber Coupled: Loosen clamps and slide off.

Step 4: Clean and Prep Pipes

Sand ends smooth, removing glue, corrosion, or debris. For threads, wrap with PTFE tape clockwise.

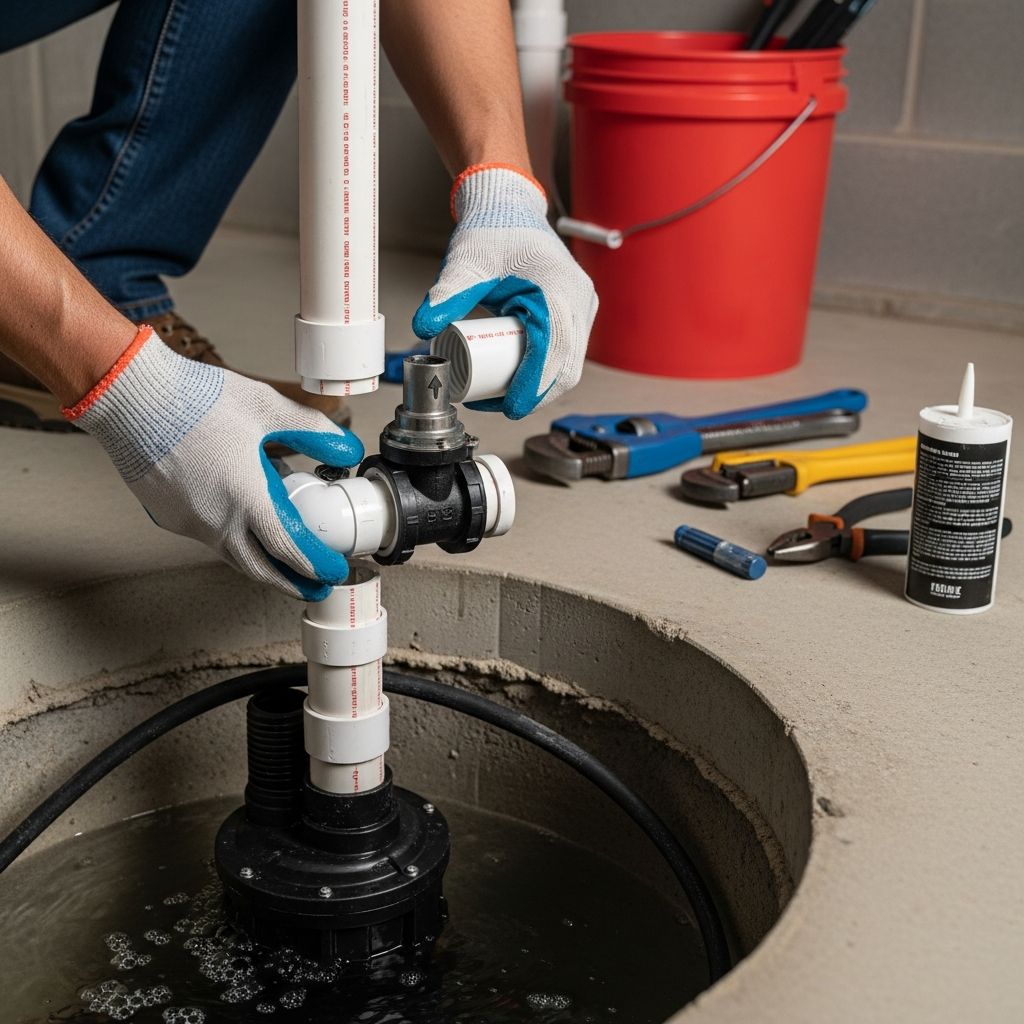

Step 5: Install the New Valve

Test-fit first. Align flow arrow upward.
Threaded: Apply sealant, hand-tighten, then wrench snug (1 extra turn).
PVC: Prime ends, cement quickly, hold 30 seconds; cure per label.
Rubber: Slide in, tighten clamps firmly.

Step 6: Initial Test Without Power

Pour water into the pit manually. Check for leaks and proper flow. Listen for backflow sounds.

Step 7: Power Up and Final Check

Restore power. Let it cycle. Verify no leaks, proper shutoff “thunk,” and stable pit levels.

Common Mistakes and How to Avoid Them

Avoid these pitfalls for a trouble-free install.

• Wrong orientation: Arrow must point away from pump—double-check.
• Valve too high: Keep 8-12 inches above pump to limit backflow volume.
• Oversight of size: Mismatch causes leaks; measure precisely.
• Over-tightening: Cracks plastic—snug is enough.
• No backflow test: Always simulate operation before full use.

Ongoing Maintenance for Longevity

Extend valve life with routine care.

Monthly Checks

• Visual scan for cracks or buildup.
• Test by adding water to pit.

Quarterly Tasks

• Clean debris from pit and valve exterior.
• Lubricate moving parts if accessible.

Annual Deep Inspection

• Disassemble cleanable valves for mineral removal.
• Replace if worn, especially in hard water areas.

Monitor sounds during operation—early warnings prevent failures.

Advanced Tips for Optimal Performance

For quieter systems, upgrade to silent valves. Install unions for quick swaps. In high-use areas, add a second valve higher up. Pair with a battery backup pump for reliability.

Frequently Asked Questions (FAQs)

What if my pipe is stuck or corroded?

Use penetrating oil and tap gently. If needed, cut and replace the section with a union.

Can I replace it while water is in the pit?

No—dry conditions prevent shorts and slips. Use a vac first.

How long does the job take?

30-90 minutes for most DIYers, depending on connection type.

Does every sump pump need a check valve?

Yes, to prevent backflow and pump damage.

What causes water hammer after replacement?

Wrong valve type or loose install—choose spring-loaded and secure fittings.

Troubleshooting Post-Installation Issues

Leaks: Tighten or reapply sealant/cement.
No pumping: Check arrow direction.
Noise persists: Upgrade to quiet model.

Regular upkeep ensures your system protects against floods effectively.
